Description
PRODUCT DESCRIPTION

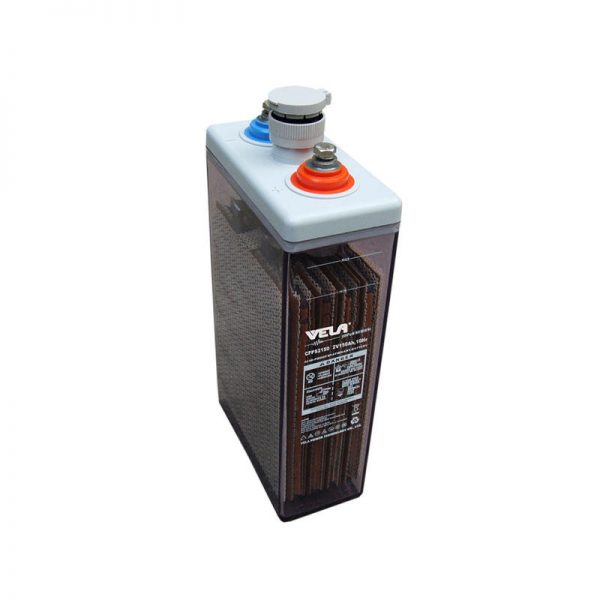

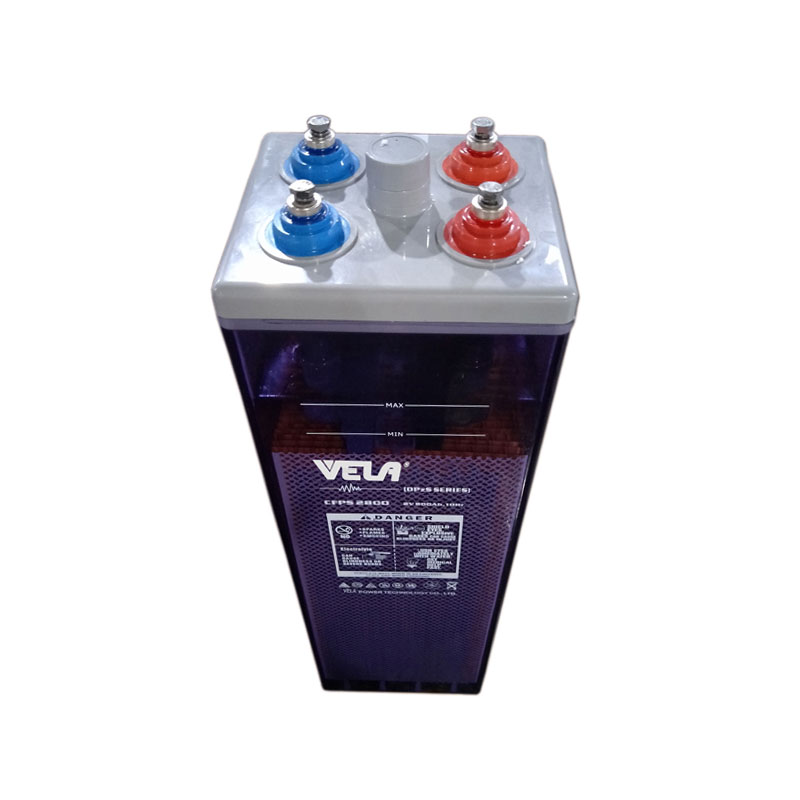

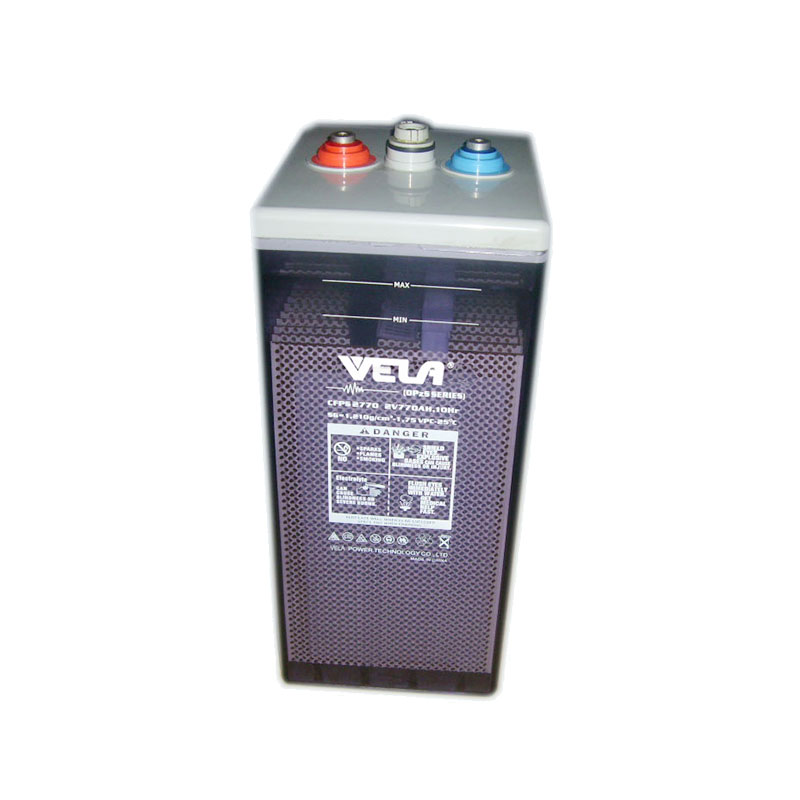

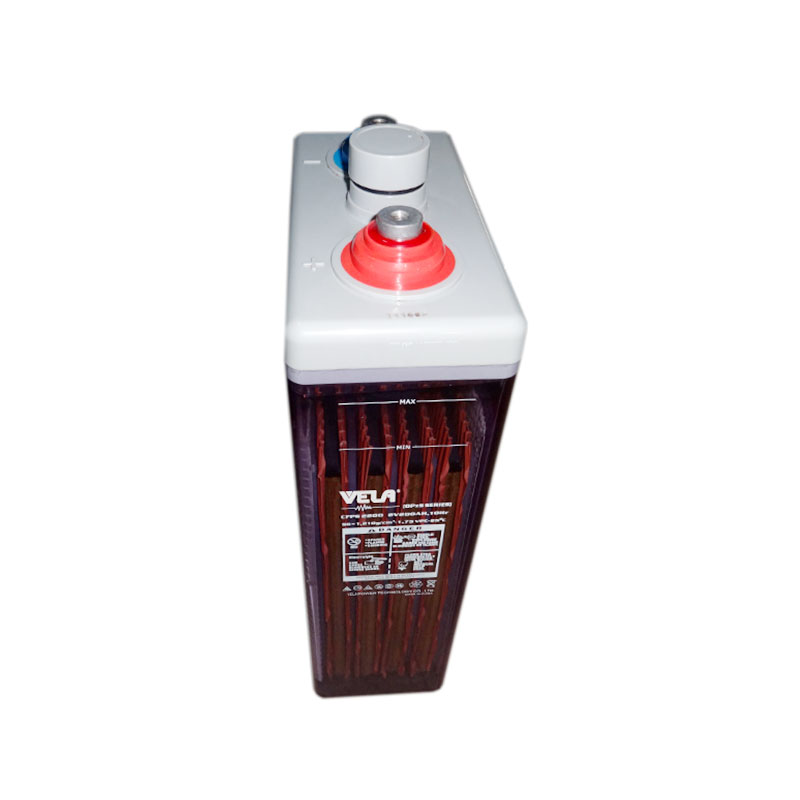

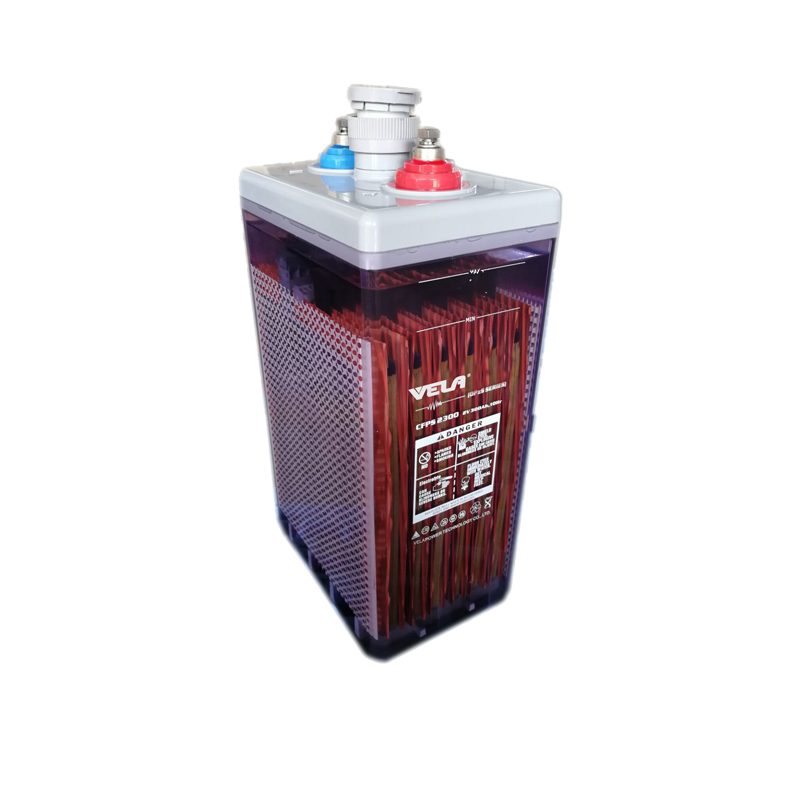

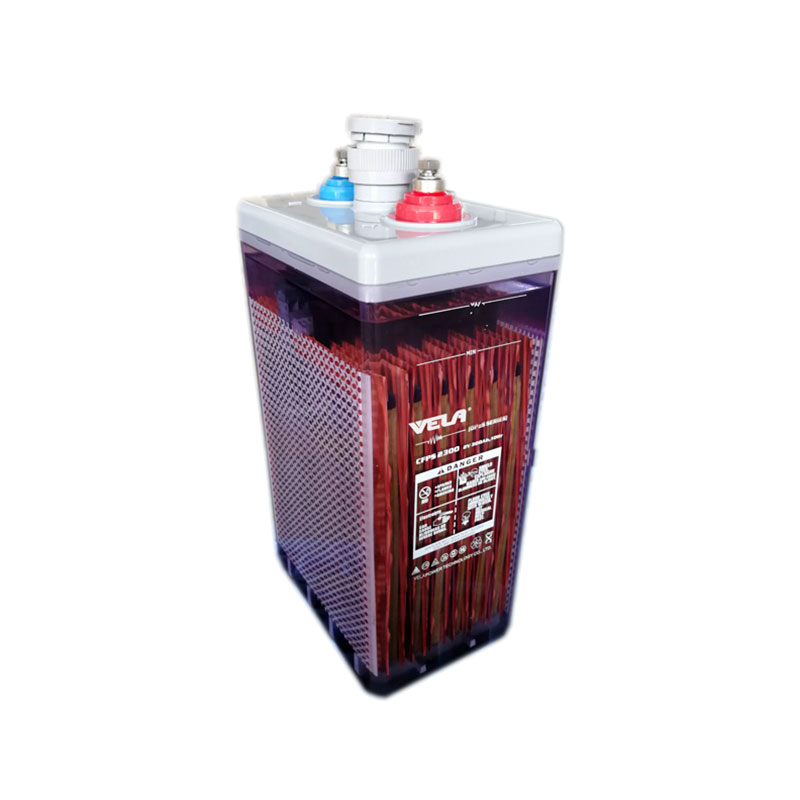

CFPS & LFPS battery is the flooded battery with tubular plate. The users need to maintain and keep the enough electrolyte for the battery to discharge. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. There is the acid-proof bolt. It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte. Its cycle life is the longest in our VRLA battery. The service life can up to 18 years in the 20℃
Application
Features
Long cycle life
Low self discharge rate
High porosity
Good corrosion resistance
Low self discharge rate
High porosity
Good corrosion resistance
General Technical Specifications
| Model | Rated Voltage (V) |
Rated Capacity (AH) |
Dimensions（mm/in） | Weight ±4%(Kg) | Number of post of the same polarity |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Dry | wet | Acid weight(d=1.24kg/L) | |||||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | Kg | Lbs | Kg | Lbs | ||||
| CFPS2100 | 2 | 100 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 8.5 | 18.74 | 13.5 | 29.76 | 5 | 11.02 | 1 |
| CFPS2150 | 2 | 150 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 11 | 24.25 | 15.5 | 34.17 | 4.5 | 9.92 | 1 |
| CFPS2200 | 2 | 200 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 13.5 | 29.76 | 17.5 | 38.58 | 4 | 8.82 | 1 |
| CFPS2250 | 2 | 250 | 124 | 4.88 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 16 | 35.27 | 21 | 46.3 | 5 | 11.02 | 1 |
| CFPS2300 | 2 | 300 | 145 | 5.71 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 18.5 | 40.79 | 24.5 | 54.01 | 6 | 13.23 | 1 |
| CFPS2350 | 2 | 350 | 124 | 4.88 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 21 | 46.3 | 28 | 61.73 | 7 | 15.43 | 1 |
| CFPS2420 | 2 | 420 | 145 | 5.71 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 24.5 | 54.01 | 33 | 72.75 | 8.5 | 18.74 | 1 |
| CFPS2500 | 2 | 500 | 166 | 6.54 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 26 | 57.32 | 36 | 79.37 | 10 | 22.05 | 1 |
| CFPS2600 | 2 | 600 | 145 | 5.71 | 206 | 8.1 | 645 | 25.4 | 700 | 27.6 | 31 | 68.34 | 43 | 94.8 | 12 | 26.46 | 1 |
| CFPS2770 | 2 | 770 | 253 | 9.96 | 210 | 8.3 | 472 | 18.6 | 527 | 20.8 | 42.5 | 93.7 | 58 | 127.87 | 15.5 | 34.17 | 1 |
| CFPS2800 | 2 | 800 | 191 | 7.52 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 44 | 97 | 60 | 132.28 | 16 | 35.27 | 2 |
| CFPS21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 52 | 114.6 | 72 | 158.73 | 20 | 44.09 | 2 |
| CFPS21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 62 | 136.7 | 86 | 189.6 | 24 | 52.91 | 2 |
| CFPS21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.3 | 795 | 31.3 | 850 | 33.5 | 75 | 165.4 | 105 | 231.49 | 30 | 66.14 | 2 |
| CFPS22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.3 | 771 | 30.4 | 826 | 32.5 | 108 | 238.1 | 150 | 330.69 | 42 | 92.59 | 3 |
| CFPS22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 130 | 286.6 | 183 | 403.45 | 52 | 114.6 | 4 |
| CFPS23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 157 | 346.1 | 220 | 485.02 | 63 | 138.9 | 4 |
| LFPS680 | 6 | 80 | 194 | 7.64 | 170 | 6.7 | 205 | 8.07 | 210 | 8.27 | 11.4 | 25.13 | 14 | 30.86 | 2.6 | 5.73 | 1 |
| LFPS6100 | 6 | 100 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 13.6 | 29.98 | 19 | 41.89 | 5.4 | 11.9 | |
| LFPS6120 | 6 | 120 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 15.5 | 34.17 | 22 | 48.5 | 6.5 | 14.33 | |
| LFPS6140 | 6 | 140 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 17.7 | 39.02 | 25 | 55.12 | 7.3 | 16.09 | |
| LFPS6140E | 6 | 140 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.2 | 40.12 | 26 | 57.32 | 7.8 | 17.2 | |
| LFPS6160 | 6 | 160 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.5 | 40.79 | 27 | 59.52 | 8.5 | 18.74 | |
| LFPS6180E | 6 | 180 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 19.5 | 42.99 | 29 | 63.93 | 9.5 | 20.94 | |
| LFPS6180 | 6 | 180 | 321 | 12.6 | 176 | 6.9 | 226 | 8.9 | 229 | 9.02 | 20.5 | 45.19 | 30.5 | 67.24 | 10 | 22.05 | |
| LFPS1260 | 12 | 60 | 260 | 10.2 | 168 | 6.6 | 211 | 8.31 | 233 | 9.17 | 15.9 | 35.05 | 20.8 | 45.86 | 4.9 | 10.8 | |
| LFPS1280E | 12 | 80 | 306 | 12.1 | 169 | 6.7 | 211 | 8.31 | 233 | 9.17 | 20.7 | 45.64 | 27.5 | 60.63 | 6.8 | 14.99 | |
| LFPS1280 | 12 | 80 | 330 | 13 | 171 | 6.7 | 214 | 8.43 | 220 | 8.66 | 20 | 4 | |||||
