HALF-CELL MONO SOLAR MODULE 156’ 310-325W



Place of Origin:China
Brand Name:VELA &PERSEUS&OEM
Model Number:HALF-CELL MONO SOLAR MODULE 156’ 310-325W
Minimum Order Quantity:100 PCS
Price:Negotiate
Packing Details:1665*1002*40MM
Delivery time:about 30 days
Payment terms:L/C,T/T
Supply Ability:1000000 per Month
Share:
Share on facebook
Share on twitter
Share on linkedin

Description

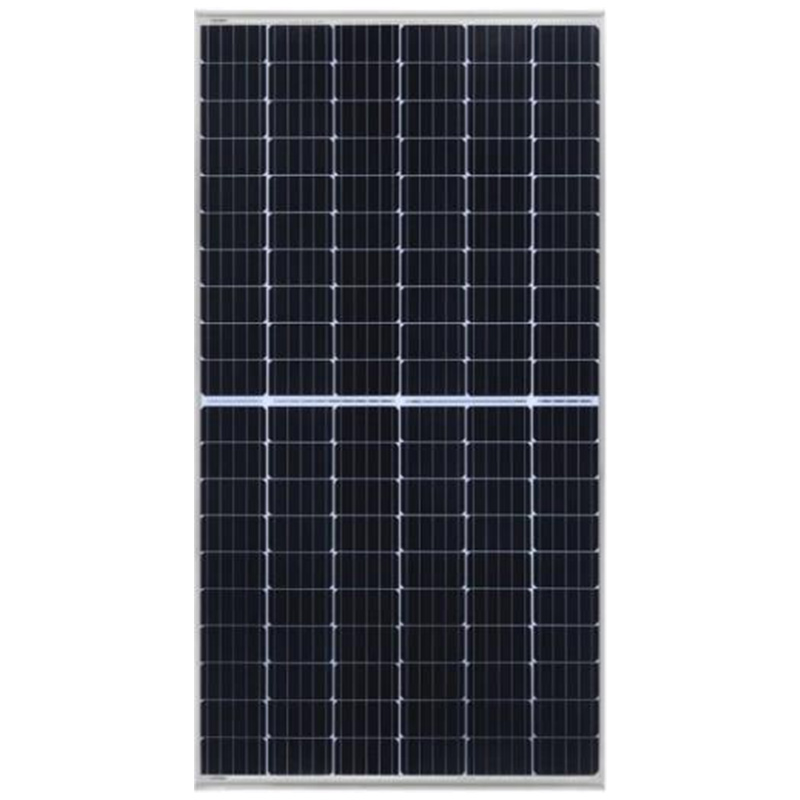

Half-Cell Mono Solar Module 156’ 310-325W



Product Feature

          ● Bypass diode minimizes the power drop by shade.

          ● The conversion efficiency of solar cell is above 20%.

          ● White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.

          ● Waterproof Perfect for grid applications.

          ● Product guarantee 10 years.

Quality Assurance

         ● Electrical Insulation test                  ● Outdoor exposure test

         ● Hot-spot endurance test                 ● UV-exposure

         ● Thermal cycling test                       ● Humidity freeze test

         ● Damp heat Test                             ● Robustness of terminations test

         ● Wet leakage current test                ● Mechanical load test

         ● Hail impact test                              ● Bypass diode thermal test

 Physical Specification

           Dimension:1665*1002*40MM                   Weight:19KG/PCS                Packing: Each box capacity: 31 pcs

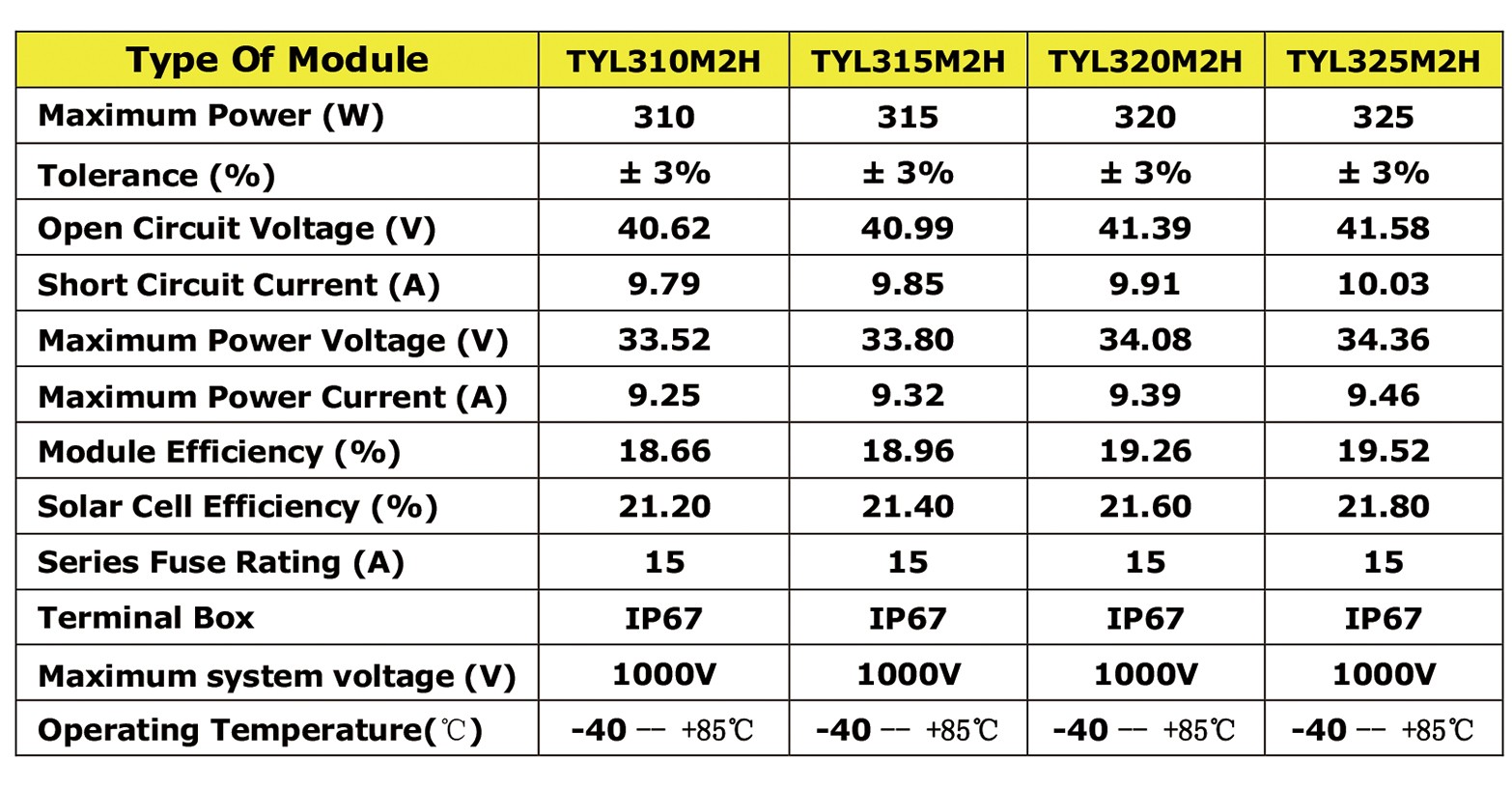

Electrical Characteristics

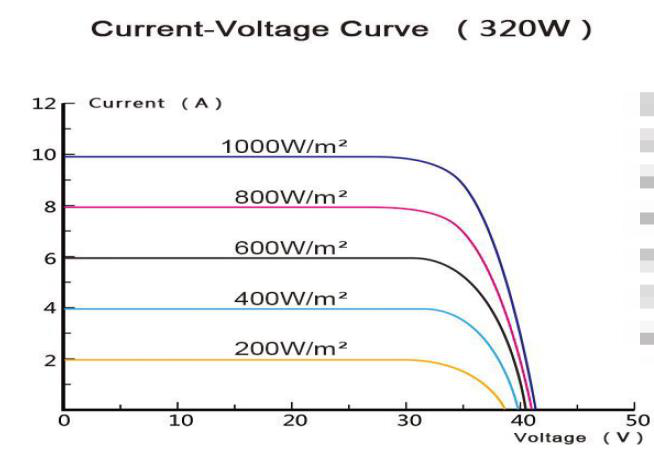

Electric Performance Typical Performance Characteristics



Short Circuit Current Temperature Coefficient %/℃   0.041
Open Circuit Voltage Temperature Coefficient %/℃   -0.393
Maximum Power Temperature Coefficient %/℃  -0.310
Performance Warranty: 90%output:12 years; 80%output:25 years
