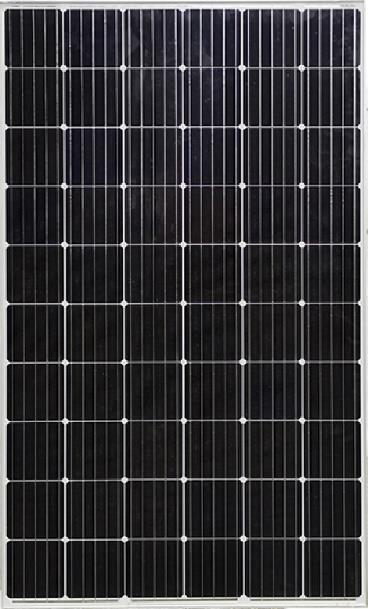

MONO SOLAR MODULE 156’ 290-320W
● Bypass diode minimizes the power drop by shade.
● The conversion efficiency of solar cell is above 20%.
● White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
● Waterproof Perfect for grid applications.
● Product guarantee 10 years.
● Electrical Insulation test ● Outdoor exposure test
● Hot-spot endurance test ● UV-exposure
● Thermal cycling test ● Humidity freeze test
● Damp heat Test ● Robustness of terminations test
● Wet leakage current test ● Mechanical load test
● Hail impact test ● Bypass diode thermal test
Dimension:1640*992*35MM Weight:18.5KG/PCS Packing: Each box capacity: 31 pcs

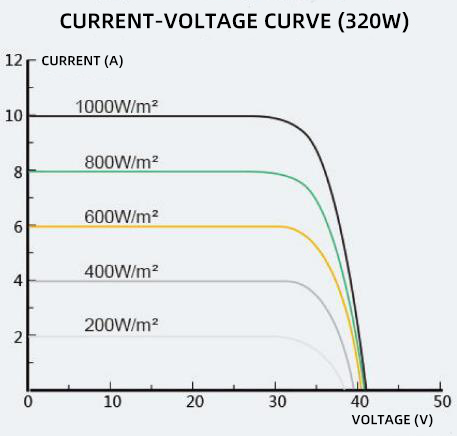

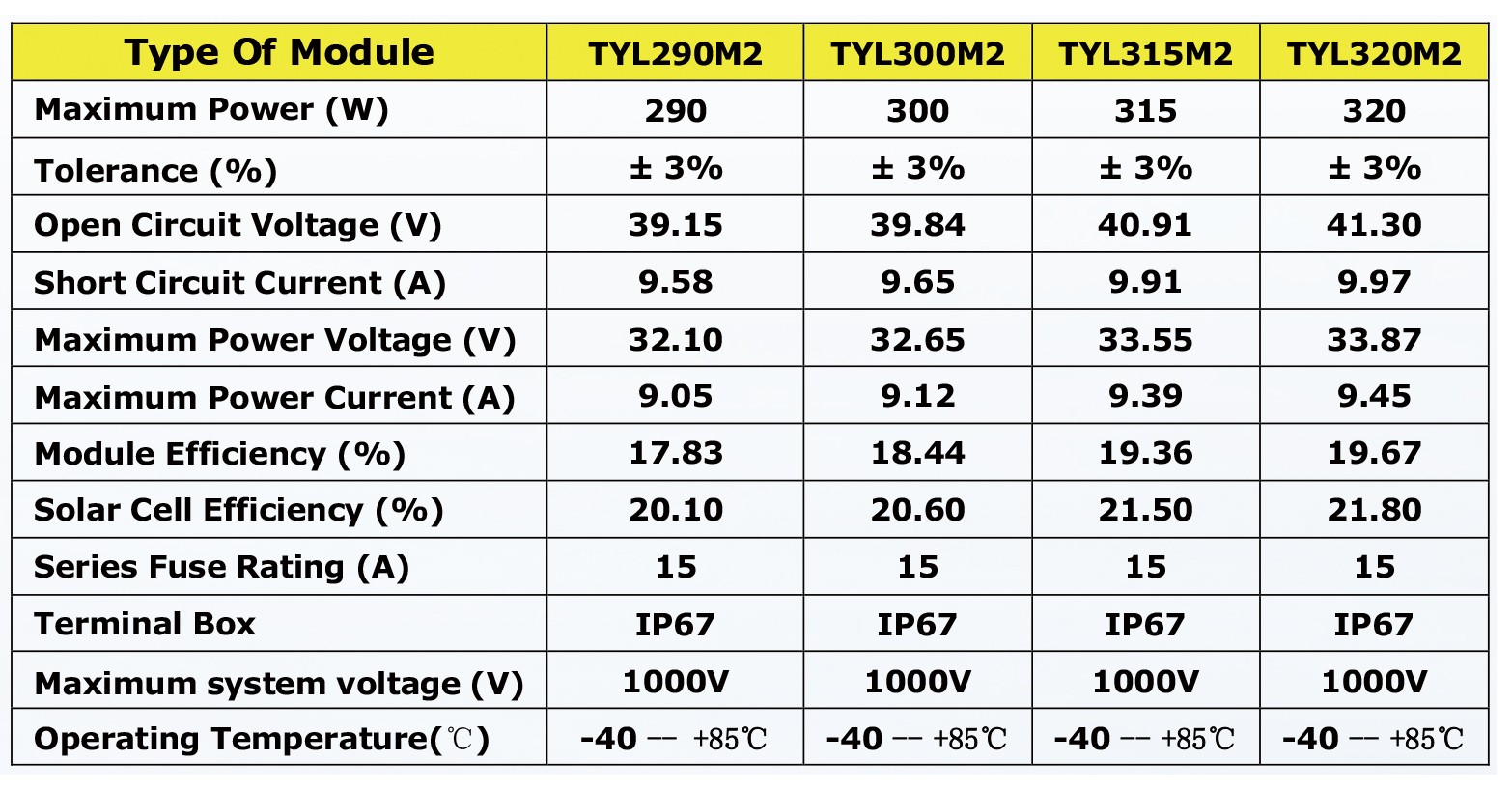

Electric Performance Typical Performance Characteristics
|Short Circuit Current Temperature Coefficient %/℃||0.041|
|Open Circuit Voltage Temperature Coefficient %/℃||-0.393|
|Maximum Power Temperature Coefficient %/℃||-0.310|
|Performance Warranty: 90%output:12 years; 80%output:25 years|
