Description

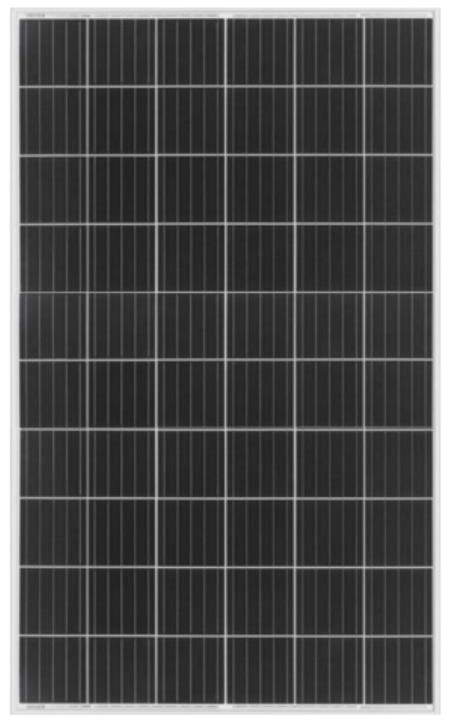

MONO SOLAR MODULE 158’ 320-335W
Product Feature
● Bypass diode minimizes the power drop by shade.
● The conversion efficiency of solar cell is above 21%.
● White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
● Waterproof Perfect for grid applications.
● Product guarantee 10 years.
Quality Assurance
● Electrical Insulation test ● Outdoor exposure test
● Hot-spot endurance test ● UV-exposure
● Thermal cycling test ● Humidity freeze test
● Damp heat Test ● Robustness of terminations test
● Wet leakage current test ● Mechanical load test
● Hail impact test ● Bypass diode thermal test
Physical Specification
Dimesion:1665*1002*35MM Weight:18.2KG/PCS Packing: Each box capacity: 31 pcs

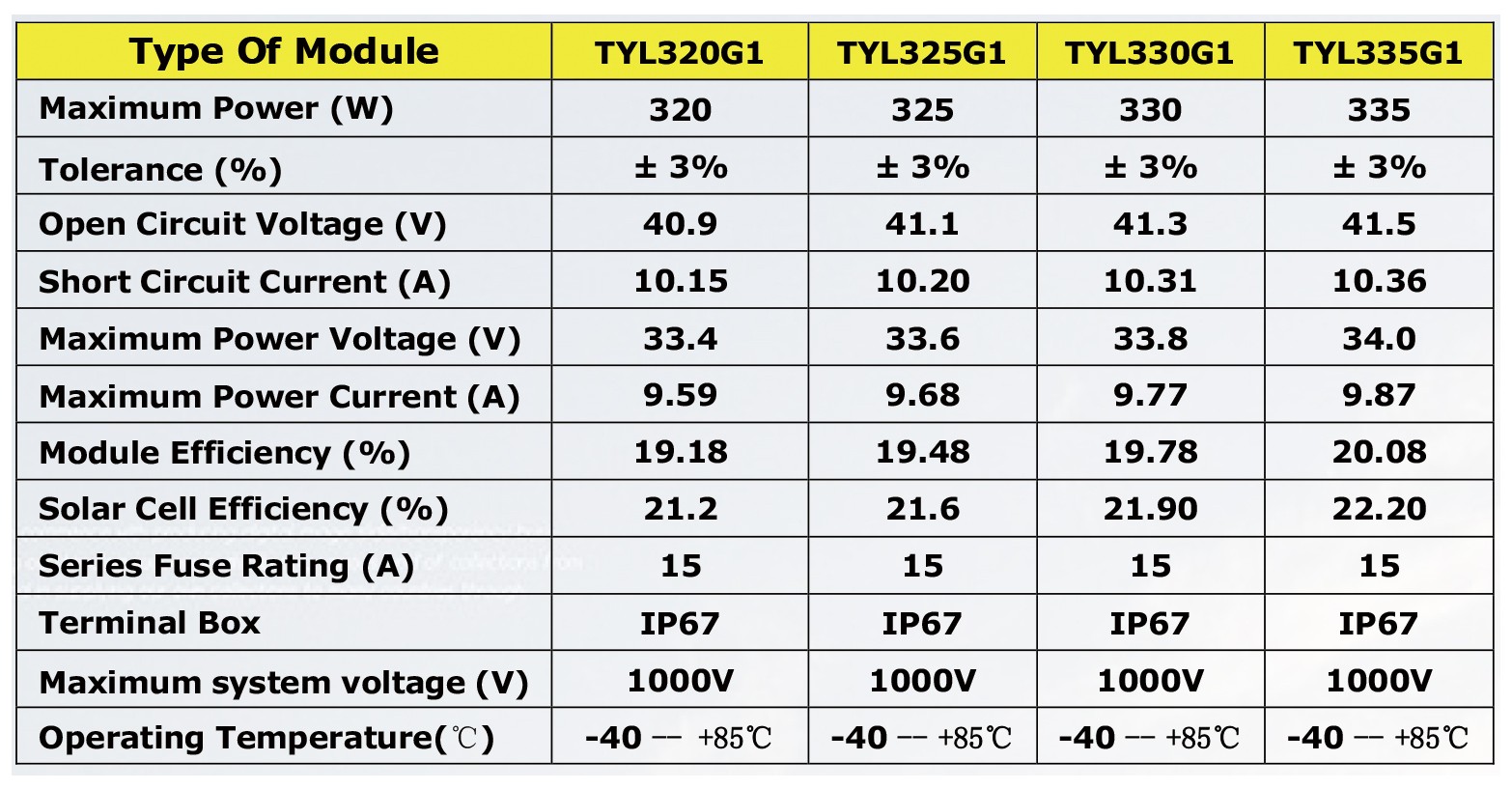

Electrical Characteristics

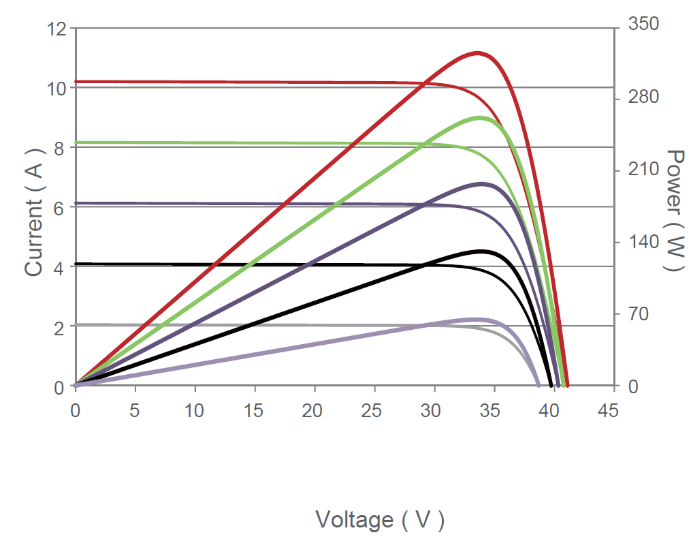

Electric Performance Typical Performance Characteristics
| Short Circuit Current Temperature Coefficient %/℃ | 0.048 |
| Open Circuit Voltage Temperature Coefficient %/℃ | -0.290 |
| Maximum Power Temperature Coefficient %/℃ | -0.370 |
| Performance Warranty: 90%output:12 years; 80%output:25 years | |
