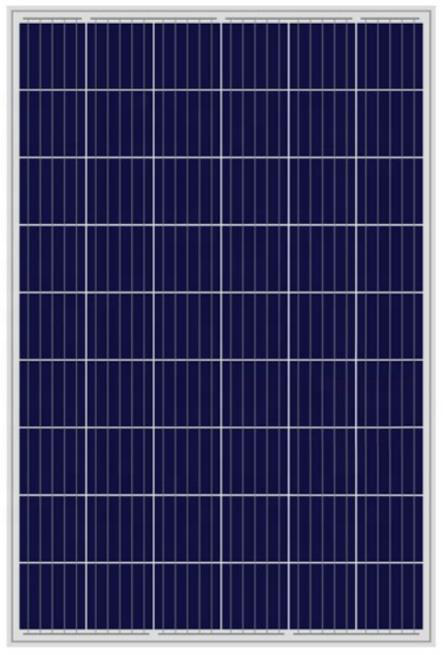

POLY SOLAR MODULE 156’ 240-260W



Place of Origin:China
Brand Name:VELA &PERSEUS&OEM
Model Number:POLY SOLAR MODULE 156’ 240-260W
Minimum Order Quantity:100 PCS
Price:Negotiate
Packing Details:1480*992*35MM
Delivery time:about 30 days
Payment terms:L/C,T/T
Supply Ability:1000000 per Month
Share:
Share on facebook
Share on twitter
Share on linkedin

Description



 POLY SOLAR MODULE 156’ 240-260W









Product Feature

       ● Bypass diode minimizes the power drop by shade.

       ● The conversion efficiency of solar cell is above 18%.

       ● White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.

       ● Waterproof Perfect for grid applications.

       ● Product guarantee 10 years.

Quality Assurance

     ● Electrical Insulation test             ● Outdoor exposure test

     ● Hot-spot endurance test            ● UV-exposure

     ● Thermal cycling test                   ● Humidity freeze test

     ● Damp heat Test                        ● Robustness of terminations test

     ● Wet leakage current test            ● Mechanical load test

     ● Hail impact test                           ● Bypass diode thermal test

Physical Specification

     Dimesion:1480*992*35MM       Weight:15KG/PCS         Packing: Each box capacity: 31 pcs

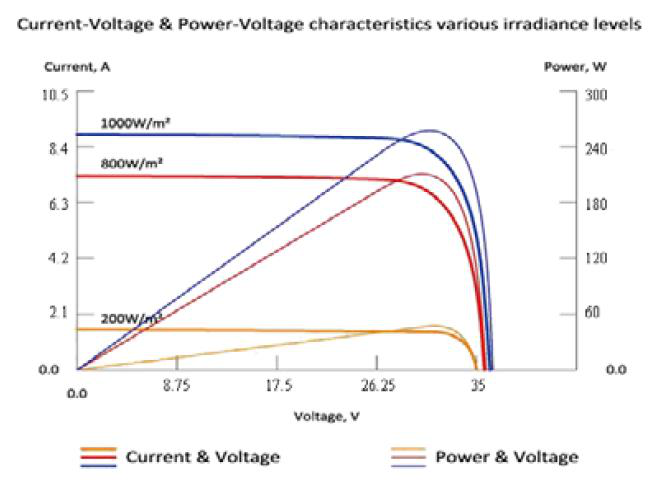

Electrical Characteristics





Electric Performance Typical Performance Characteristics

Short Circuit Current Temperature Coefficient %/℃   0.041
Open Circuit Voltage Temperature Coefficient %/℃   -0.393
Maximum Power Temperature Coefficient %/℃  -0.310
Performance Warranty: 90%output:12 years; 80%output:25 years
